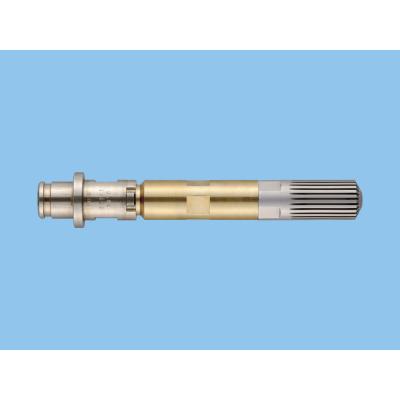

Descaling nozzles (Ultra-high pressure) TDSS series nozzle

Marka: IKEUCHI

Mountain shaped spray distribution

Mountain shaped spray distribution nozzles are flat spray nozzles. We designed the flat spray pattern nozzles to produce a mountain-shaped distribution to obtain a uniform spray distribution in a multiple-nozzle arrangement. Although the distribution depends on spray height, nozzle spacing, liquid pressure, and liquid nature, it is not possible to get the desired spray distribution if spray nozzles have some variation in product quality. IKEUCHI’s hydraulic spray nozzles are guaranteed for spray angle and spray capacity so that uniform distribution is maintained as designed.

The spray distribution means the distribution of spray flow in the spray width direction. A mountain-shaped distribution is useful in producing uniform spray distribution across the entire spray width by overlapping patterns in multiple-nozzles arrangements. Spray distribution varies depending on the spray height and pressure.

At IKEUCHI, we have determined the fundamentals to select the right nozzle for your application based on their characteristics. When selecting the nozzle, we advise you based on your required spray angle, spray capacity, optimum spray pattern, and spray distribution.

If you have technical question about nozzles, need advice to choose, or request a quote,

Pipe conn. size	Welding	Spray angle	20–65ﾟ	Mean droplet diameter	-
Strainer	Included or available	Standard pressure	15 MPa	Spray capacity	15.0–138 ℓ/min
Air consumption	-	Free passage diameter	0.7–1.5 mm

Features

• Flat spray nozzles specially designed for descaling.
• Produces razor-like thin, sharp stream with even spray distribution and high spray impact.
• TDSS series, with much higher spray impact, increases erosion depth by 20% compared to the conventional model.
• Water-saving.
