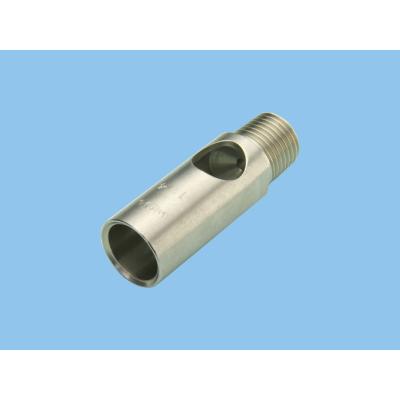

Ejector nozzle for solution agitation EJX series nozzles

Marka: IKEUCHI

Pipe conn. size	R1/8, R1/4, R3/8, R1/2, R3/4, R1, or R1*1/2	Spray angle	-	Mean droplet diameter	-
Strainer	Not included	Standard pressure	0.05 MPa	Spray capacity	3.1–460 ℓ/min (Reference value)
Air consumption	-	Free passage diameter	1.5–17.5

Features

• Taking in surrounding liquid, EJX series solution agitation nozzle spouts out 3-4 times more volume than the amount supplied.
• Simple structure and compact design suitable for multiple-nozzle arrangement.

Applications

• Solution agitation, preventing deposition, uniformizing concentration and pH
• Cleaning in liquids
• Submerged etching
• Plating

Industries in which this nozzle is used

• Electronics
• Automotives

Product specifications

Structure

• One-piece structure producing 3-4 times more spray volume than the amount supplied.

Material

• Stainless steel 304 or PVC for sizes 1M and 1*1/2M
• Stainless steel 303 or PP-IN for sizes 1/8M and 1/4M
• Stainless steel 303 for other thread sizes

Mass

Body	Pipe conn. size	Mass（g）
Body	Pipe conn. size	Stainless steel 303	Stainless steel 304	PP	PVC
Metal	R1/8	11	-	-	-
	R1/4	26	-	-	-
	R3/8	80	-	-	-
	R1/2	170	-	-	-
	R3/4	420	-	-	-
	R1	-	2,200	-	-
	R1*1/2	-	3,200	-	-
Plastic	R1/8	-	-	1.3	-
	R1/4	-	-	3.2	-
	R3/8	-	-	10	-
	R1/2	-	-	20	-
	R3/4	-	-	48	-
	R1	-	-	-	460
	R1*1/2	-	-	-	540

• Size R1/8 and R1/4 made of PP are injection molded.
• Figures in ( ) after the pipe connection sizes indicate the spray capacity codes.

Outer dimensions

EJA series

Body (material)	Pipe conn. size	Outer dimensions（mm）
Body (material)	Pipe conn. size	L	H	φD	N
Metal	R1/8	30	10	11	7
	R1/4	48	14	16	10.5
	R3/8	72	22	24	11
	R1/2	93	27	31	14
	R3/4	126	34	42	15
	R1	172	60	76.3	18
	R1*1/2	212	80	89.1	20

Body (material)	Pipe conn. size	Outer dimensions（mm）
Body (material)	Pipe conn. size	L	H	φD	N
Plastic	R1/8	30	11	11	7
	R1/4	48	16	16	10.5
	R3/8	72	22	24	11
	R1/2	93	27	31	14
	R3/4	126	34	42	15
	R1	172	60	80	18
	R1*1/2	212	80	90	20

[Note]
• Sizes R1/8 and R1/4 made of PP are injection molded.
• Appearance and dimensions may differ slightly depending on materials and nozzle codes. Inquire with us for details.

Related products

[Two-direction Jet type]

• Two-direction jet EJX series (Spray from two holes at an angle of 45 degrees)
• One-piece structure
• material : PP or Stainless steel 303
• Solution agitation, preventing deposition, uniformizing concentration and pH, submerged etching, plating

[Slit jet type]

• Slit jet type EJX series
• Flat spray pattern produced from 70 mm-wide slit
• Comprises two parts : Nozzle tip and cap (body)
• material : PP or Stainless steel 303
• Applications: Solution agitation, preventing deposition, uniformizing concentration and pH, submerged etching, plating, blowing off water drops on the edge
