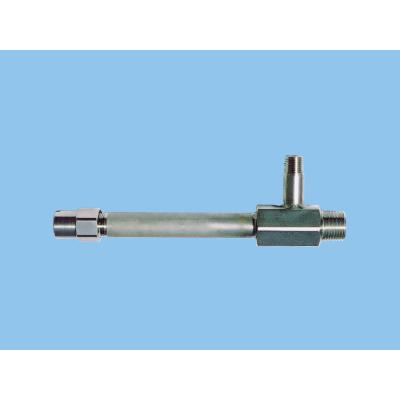

Flat Spray Semi-Fine Fog Nozzles DOVEA series nozzles
Marka: IKEUCHI
| Thread standard | - | Pipe conn. size | R1/4–R1/2 | Standard pressure | - |
|---|---|---|---|---|---|
| Spray angle | 55°–110° (*1) | Spray capacity | 0.42–40 ℓ/min | Supply air type | Compressed air |
| Liquid feeding system | Liquid pressure | Mean droplet diameter | 50–200 μm (*3) | Air consumption | 30–630 ℓ/min, Normal |
| Air pressure | 0.1–0.4 MPa | Free passage diameter | 2.0–5.6 mm (*2) | ||
Features
• Flat spray pneumatic nozzle producing a large volume of semi-fine atomization with a mean droplet diameter of 50 μm or more (*3).
• Liquid pressure type under the liquid pressures of 0.07–0.7 MPa.
• Large turn-down ratio with minimal variation in spray angle.
• Uniform distribution suitable for multiple-nozzle arrangements.
• Large free passage diameter minimizes clogging.
• Spray angle of 55ﾟ, 70ﾟ, 95ﾟ, or 110ﾟ.
*1) Measured at compressed air pressure of 0.3 MPa and liquid pressure of 0.7 MPa.
*2) Free passage diameter of nozzle orifice.
*3) Measured by Fraunhofer diffraction method.
Applications
Cooling: Gas, steel plates, steel pieces, moldings, etc.
[Steelmaking industry]
Steel making process: Cooling continuous casted steel (bloom and slab)
Rolling mill process: Cooling roll in heat treatment
Industries in which this nozzle is used
• Steelmaking
• Pollution Control
Product specifications
| Outer dimensions | See the catalog below for more details. |
|---|---|
