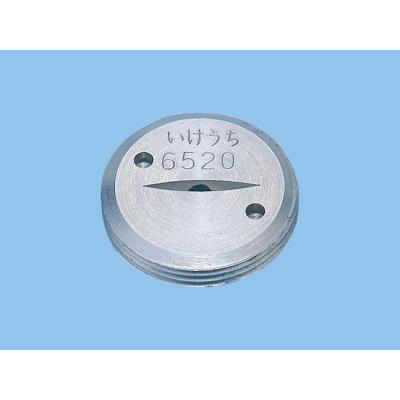

Flat spray with mountain-shaped spray distribution(Coin-shaped) CVVP series nozzles

Marka: IKEUCHI

Mountain shaped spray distribution

Mountain shaped spray distribution nozzles are flat spray nozzles. We designed the flat spray pattern nozzles to produce a mountain-shaped distribution to obtain a uniform spray distribution in a multiple-nozzle arrangement. Although the distribution depends on spray height, nozzle spacing, liquid pressure, and liquid nature, it is not possible to get the desired spray distribution if spray nozzles have some variation in product quality. IKEUCHI’s hydraulic spray nozzles are guaranteed for spray angle and spray capacity so that uniform distribution is maintained as designed.

The spray distribution means the distribution of spray flow in the spray width direction. A mountain-shaped distribution is useful in producing uniform spray distribution across the entire spray width by overlapping patterns in multiple-nozzles arrangements. Spray distribution varies depending on the spray height and pressure.

At IKEUCHI, we have determined the fundamentals to select the right nozzle for your application based on their characteristics. When selecting the nozzle, we advise you based on your required spray angle, spray capacity, optimum spray pattern, and spray distribution.

If you have technical question about nozzles, need advice to choose, or request a quote,

Pipe conn. size	M20×1	Spray angle	65–90ﾟ	Mean droplet diameter	210–450 μm
Strainer	Not included	Standard pressure	0.3 MPa	Spray capacity	1.00–8.00 ℓ/min
Air consumption	-	Free passage diameter	0.5–1.9 mm

Features

• Flat spray pattern with a mountain-shaped spray distribution having gradually tapered edges.
• In the shape of a thin coin, this nozzle does not protrude out of a pipe-surface, which makes it easy to accommodate nozzle headers in narrow spaces.
