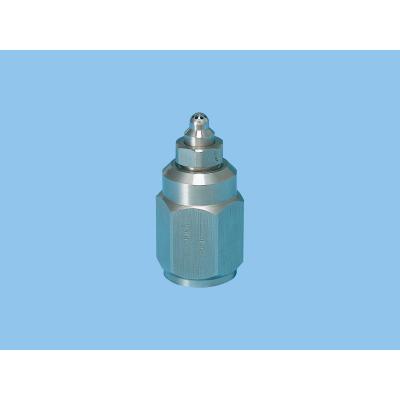

Low Flow Rate Fine Fog Nozzles/ Hollow Cone Spray BIMK series nozzles
Marka: IKEUCHI
| Thread standard | - | Pipe conn. size | - | Standard pressure | - |
|---|---|---|---|---|---|
| Spray angle | 60° (*1) | Spray capacity | 2.0–107 ℓ/hr | Supply air type | Compressed air |
| Liquid feeding system | Liquid pressure | Mean droplet diameter | 20–100 μm | Air consumption | 13–245 ℓ/min, Normal |
| Air pressure | 0.2–0.4 MPa | Free passage diameter | 0.5–1.1 mm (*2) |
Features
• Hollow cone spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 100 μm or less (*3).
• Features large turn-down ratio under liquid pressures of 0.1–0.3MPa.
• Spray angle of 60ﾟ.
*1) Spray angle measured at compressed air pressure of 0.3 MPa and liquid pressure of 0.1 MPa.
*2) Free passage diameter of nozzle orifice.
*3) Measured by Laser Doppler Method.
Applications
Spraying: Mold release agent, lubricant, deodorant (trash pit, refuse collector, inlet conduit), oil, surface treatment agent, rust preventive, honey, insecticide, aqueous urea, etc.
Cooling: Dies, gas, glass, steel plates, steel pieces, moldings, automobile bodies, plastic products, etc.
Moisture control: Paper, gas, ceramics, concrete, etc.
[Steelmaking industry]
Raw material process: Dust suppression at the conveyor line, Flue gas denitration reducing agent
Steelmaking process: Cooling refractories at maintenance of ladle and tundish, Cooling electric furnace and electrode
Rolling mill process: Cooling coil
Surface finish process: Minimized spangle treatment at the continuous galvazing line, Cooling coating line
Industries in which this nozzle is used
• Steelmaking
• Pollution control
• Electronics
• Paper & pulp
• Printing
• Food
• Automotives
Product specifications
| Outer dimensions | See the catalog below for more details. |
|---|---|
| Related products |
|
|
