Pressure-open nozzle RJ2-PON
Marka: IKEUCHI
| Pipe conn. size | - | Rated pressure | 0.2-0.5MPa | Spray capacity | 40, 60, 80 L/min (at 0.3MPa) |
|---|---|---|---|---|---|
| Reach distance | *1 | Cleaning distance | - | Max. allowable temperature | 80℃ |
Features

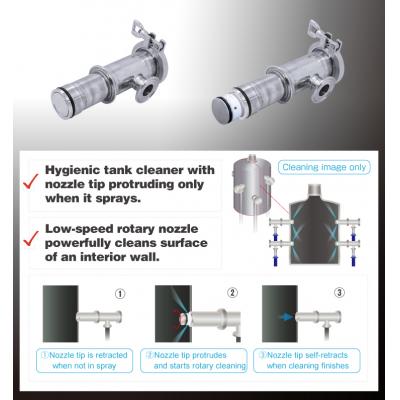

• Pressure opening nozzle: an interior wall cleaning nozzle that opens/closes by liquid pressure.
• Unique mechanism: the nozzle tip protrudes and rotates for cleaning only when activated by liquid pressure.
• Low-speed rotary nozzle powerfully cleans inside of ducts or tanks.
• Enables fixed installation: nozzle tip surface is flat in interior wall when not in use for cleaning.
• Highly chemical-resistant and hygienic.
*1) Reach distance is mentioned in “Other information”.
Applications
• Tank cleaning
• Duct cleaning
Industries in which this nozzle is used
• Chemical
• Paper & Pulp
• Printing
• Food & beverages
• Medical
Product specifications
| Mass | 1.3kg | |||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | RJ2-PON series
Note: Ferrules and clamps necessary at openings for insertion and connection of the nozzles to ducts or tanks are to be prepared by customers. | |||||||||||||||||||||||||||
| Other information | Flow-rate Diagram
Reach distances
Rotational speed• Approx. 170rpm
Chemical resistance• Weak acid/alkaline 3% or less | |||||||||||||||||||||||||||
