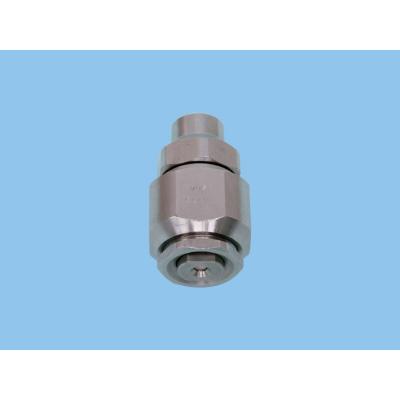

Solid stream jet with ON/OFF control SO-CM series nozzles

Marka: IKEUCHI

Pipe conn. size	Rc1/8	Spray angle	-	Mean droplet diameter	-
Strainer	Not included	Standard pressure	-	Spray capacity	0.08–0.75 ℓ/min（at the pressure 0.3 MPa）
Air consumption	-	Free passage diameter	0.3–1.0 mm

Features

• Solid stream nozzles with high spray impact.
• Prevents dripping after spraying stops.
• Quick response ON/OFF spray.
• Spray ON/OFF can be regulated by pilot air ON/OFF.

Applications

• Trimming: Paper making, asbestos plate
• Cutting: Timber, food
• Others: Marking, cleaning of precision machine parts, injection of chemicals, deburring, seasoning

Industries in which this nozzle is used

• Machinery
• Paper & Pulp
• Printing
• Food

Product specifications

Structure

• Spray ON/OFF can be regulated by switching the pilot air ON/OFF. The pilot air activates an internal piston to regulate the spray.

Material

• Nozzle orifice: ceramic
• Metal parts: Stainless steel 303

Mass

150 g

Outer dimensions

SO-CM series

No.	Components
①	Ceramic orifice
②	Adhesive: Araldite®
③	Tip retainer
④	Cap
⑤	Packing (PTFE)
⑥	Adaptor
⑦	Spring cap
⑧	O-ring (FKM)
⑨	Lock nut
⑩	Y-paking (NBR)
⑪	Piston
⑫	Sleeve (UHMWPE)
⑬	Spring (S304)

[Note]
• A mounting adaptor is available for fixing SO-CM series nozzle onto a pole to spray in the desired direction.
Please specify "(widh φ10 mounting adaptor)" at the end of the product code to order.
• Appearance and dimensions may differ slightly depending on materials and nozzle codes. Inquire with us for details.
• In our material code, "S" represents "stainless steel". (Example) S304 represents stainlees steel 304.

Related products

[Mounting adaptor (Optional)]

・A mounting adaptor is available for fixing SO-CM series nozzle onto a pole to spray in the desired direction.
・Please specify "(with φ10 mounting adaptor)" at the end of the product code to order.
