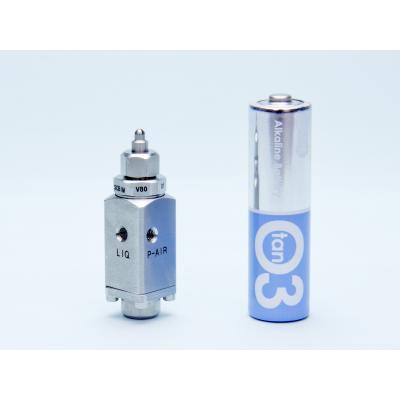

Ultra-Compact Size, Low Flow Rate Fine Fog Nozzles/ Flat Spray SCBIMV-S series nozzles

Marka: IKEUCHI

Thread standard	-	Pipe conn. size	M3 depth 2.5 (Air inlet/pilot air), M3 depth 3 (Liquid)	Standard pressure	-
Spray angle	80°*	Spray capacity	0.1–0.74 ℓ/hr	Supply air type	Compressed air
Liquid feeding system	Liquid siphon	Mean droplet diameter	20–30 μm**	Air consumption	3.75–12.5 ℓ/min, Normal
Air pressure	0.2–0.4 MPa	Free passage diameter	0.2 mm (Nozzle orifice)

Features

• Flat spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 30 μm or less.**
• Ultra-compact size. About 42 mm in total length including control adaptor.
• Liquid siphon feed type (liquid pressure device is not required).
• Even spray distribution across the entire spray area.
• Spray angle of 80ﾟ. *
• Capable of spraying smallest flow rate among all of our pneumatic spray nozzles.
• Spray ON/OFF can be regulated by switching the pilot air ON/OFF (adaptor type SP) or by turning compressed air ON/OFF (adaptor type SN).

*Spray angle measured at compressed air pressure of 0.3 MPa and liquid siphon height of 100 mm.
**Mean droplet diameter measured by laser Doppler method.

Applications

Spraying: Mold release agent, lubricant, deodorant (trash pit, refuse collector, inlet conduit), oil, surface treatment agent, rust preventive, honey, insecticide, aqueous urea, etc.
Cooling: Dies, gas, glass, steel plates, steel pieces, moldings, automobile bodies, plastic products, etc.
Moisture control: Paper, gas, ceramics, concrete, etc.
Cleaning: Printed circuit boards, glass tubes, etc.
Others: Dust suppression, catalyst denitration, etc.

Industries in which this nozzle is used

• Steelmaking
• Electronics
• Paper & pulp
• Printing
• Food
• Automotives

Product specifications

Structure

• Comprising seven parts: Nozzle tip, core, cap, connector, adaptor, packing, and spring cap.
• Connecting adaptor (spray ON/OFF control adaptors) are available from the type SP or SN.
• Internal mixing type designed to mix compressed air and liquid inside the nozzle (Inner air type: compressed air flows in the center of the nozzle, while liquid flows along its circumference).
• Liquid siphon feed type.

Material

• Stainless steel 303 (Packing: FKM)

Mass

30 g

Outer dimensions
