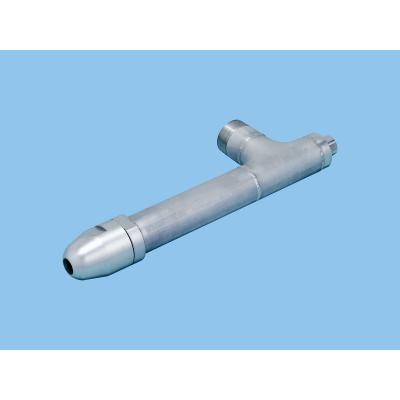

Ultra-Low Pressure Semi-Fine Fog Nozzles/ Full Cone Spray LSIM series nozzles
Marka: IKEUCHI
| Thread standard | - | Pipe conn. size | Liquid inlet: Rc1/2, Air inlet: R1*1/2 or R2 | Standard pressure | - |
|---|---|---|---|---|---|
| Spray angle | 20° | Spray capacity | 0–1,000 ℓ/hr (*1) | Supply air type | Blower air |
| Liquid feeding system | Liquid pressure | Mean droplet diameter | - | Air consumption | 1,500–6,000 ℓ/min, Normal (*2) |
| Air pressure | 0.02–0.06 MPa | Free passage diameter | 1.5–2.0 mm (*3) |
Features
• Full cone spray pneumatic nozzle producing fine atomization with a mean droplet diameter of 40 μm or more (*4).
• Produces semi-fine atomization having no large droplets. When the mean droplet diameter is 80 μm, the maximum droplet diameter is 180 μm (*4) under air-water ratio of 250.
• Energy-saving for blower-use. Low running cost.
• Spray angle of 20ﾟ.
*1) Spray capacity measured at liquid pressure of 0–2 MPa.
*2) Air consumption measured at compressed air pressure of 0.02–0.06 MPa.
*3) Free passage diameter of liquid inlet.
*4) Measured by Laser Doppler Method.
Applications
Cooling: Gas, refractories
Industries in which this nozzle is used
• Pollution control
Product specifications
| Structure | • Comprising several parts: Nozzle tip, adaptor, pipe, etc. • Internal mixing type designed to mix compressed air and liquid inside the nozzle (Outer air type: Liquid flows in the center of the nozzle, while compressed air flows along its circumference). • Liquid pressure type (utilizing blower air for atomizing). | |||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | Stainless steel 316L, 304, etc. (For details, see the component list below the drawing) | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mass |
| |||||||||||||||||||||||||||||||||||||||||||||||||||||
| Outer dimensions |
In our material code, "S" represents "stainless steel". (Example) S316L represents stainless steel 316L.
Dimensions and Pipe connection sizes
• Appearance and dimensions may differ depending on nozzle codes and materials. Please contact us for details. | |||||||||||||||||||||||||||||||||||||||||||||||||||||
